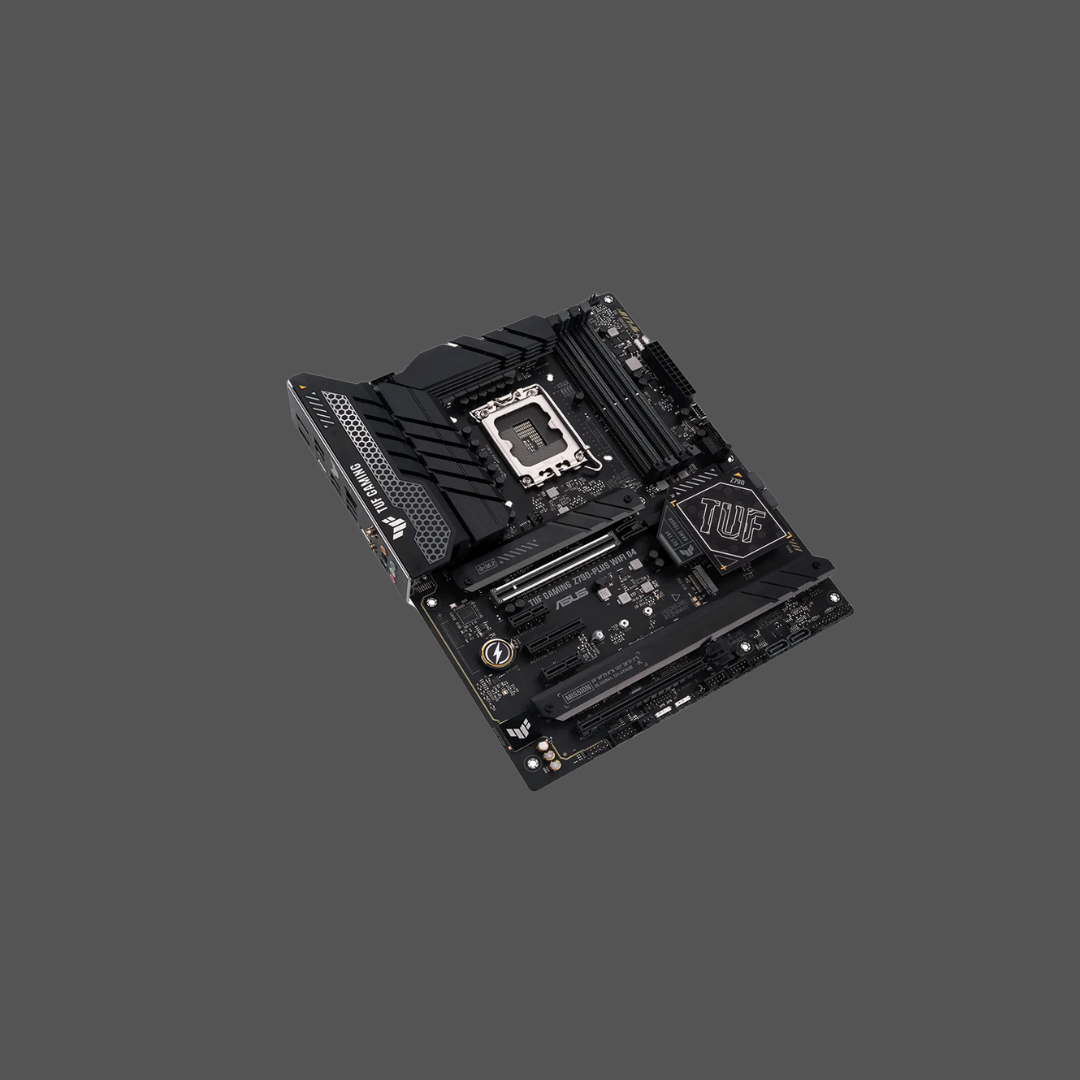

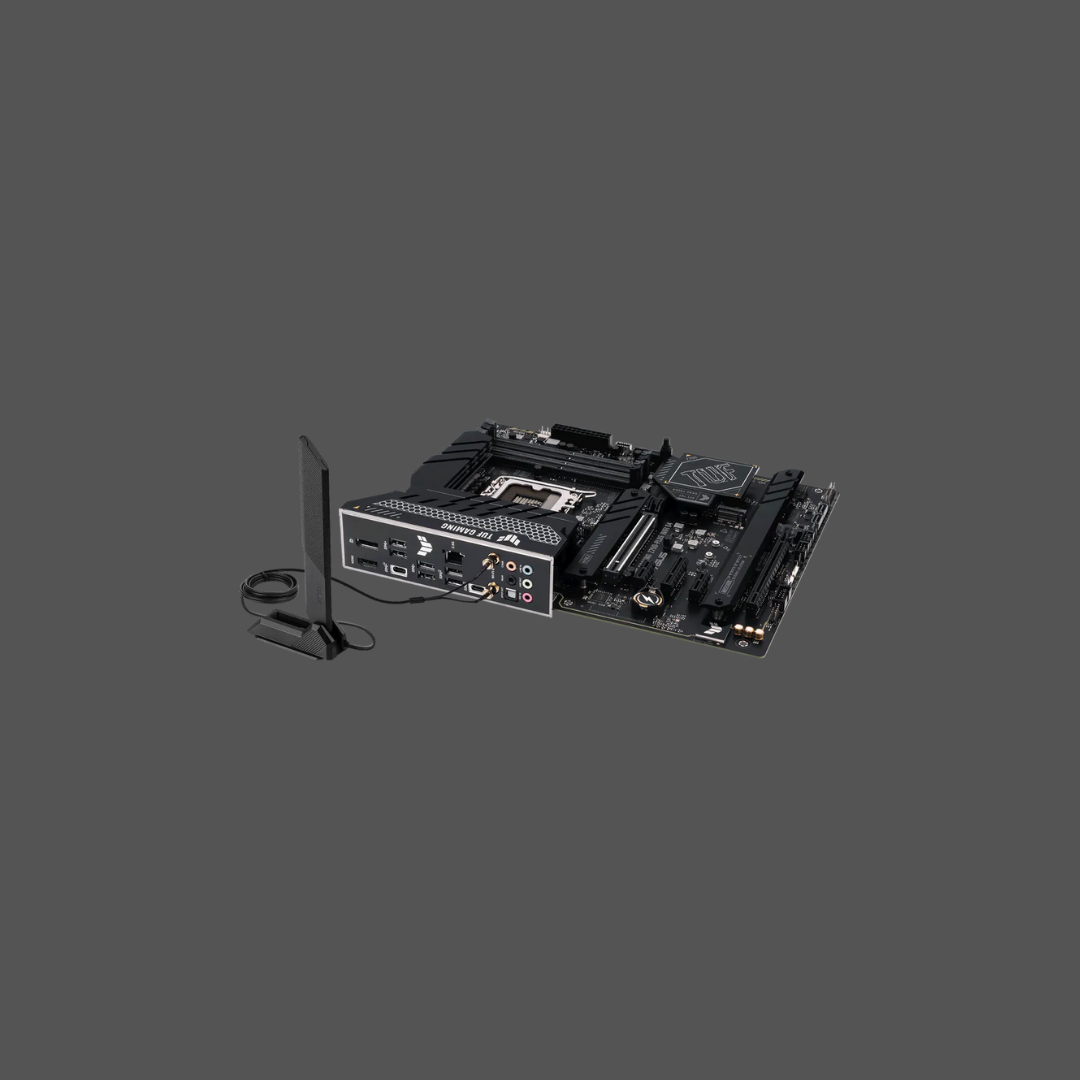

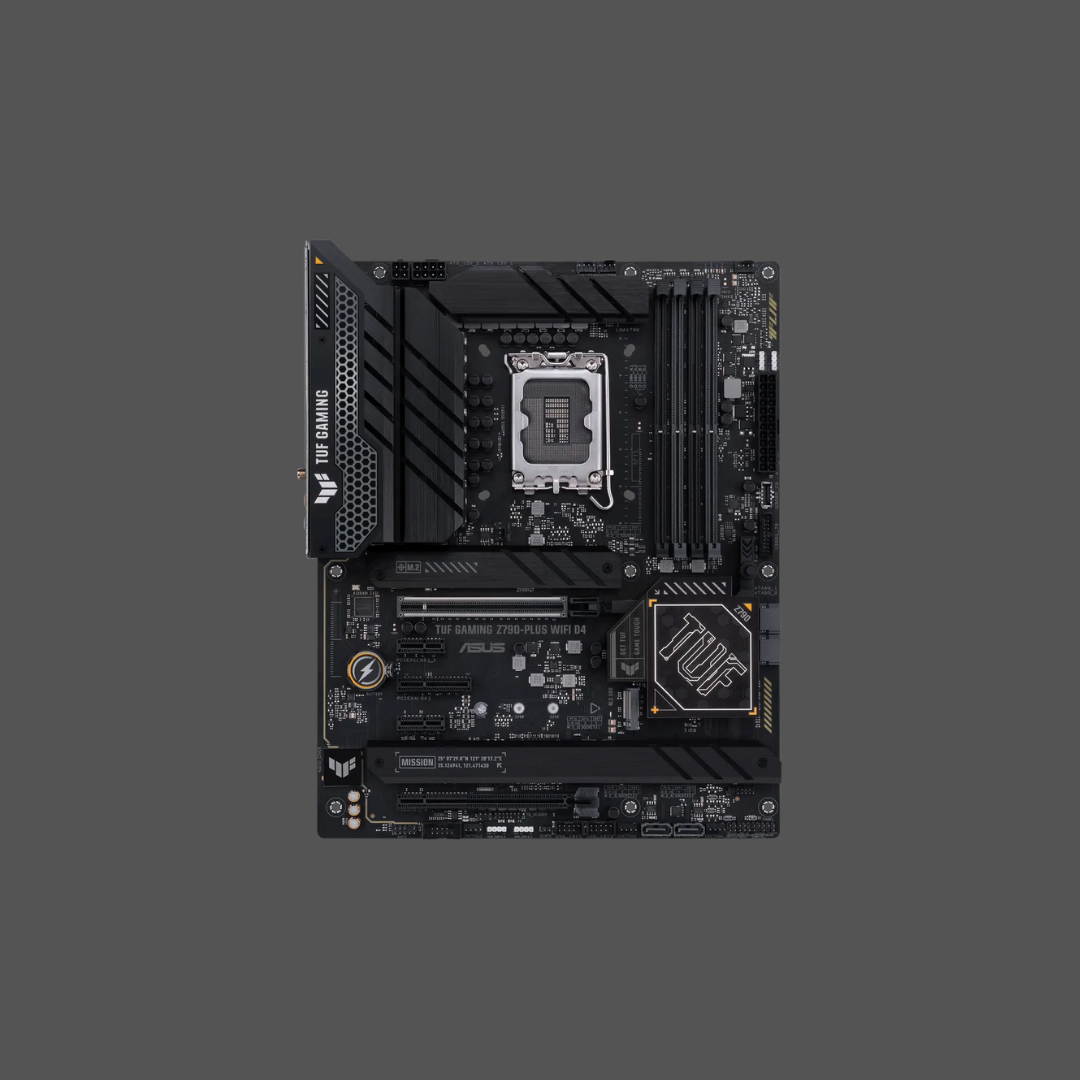

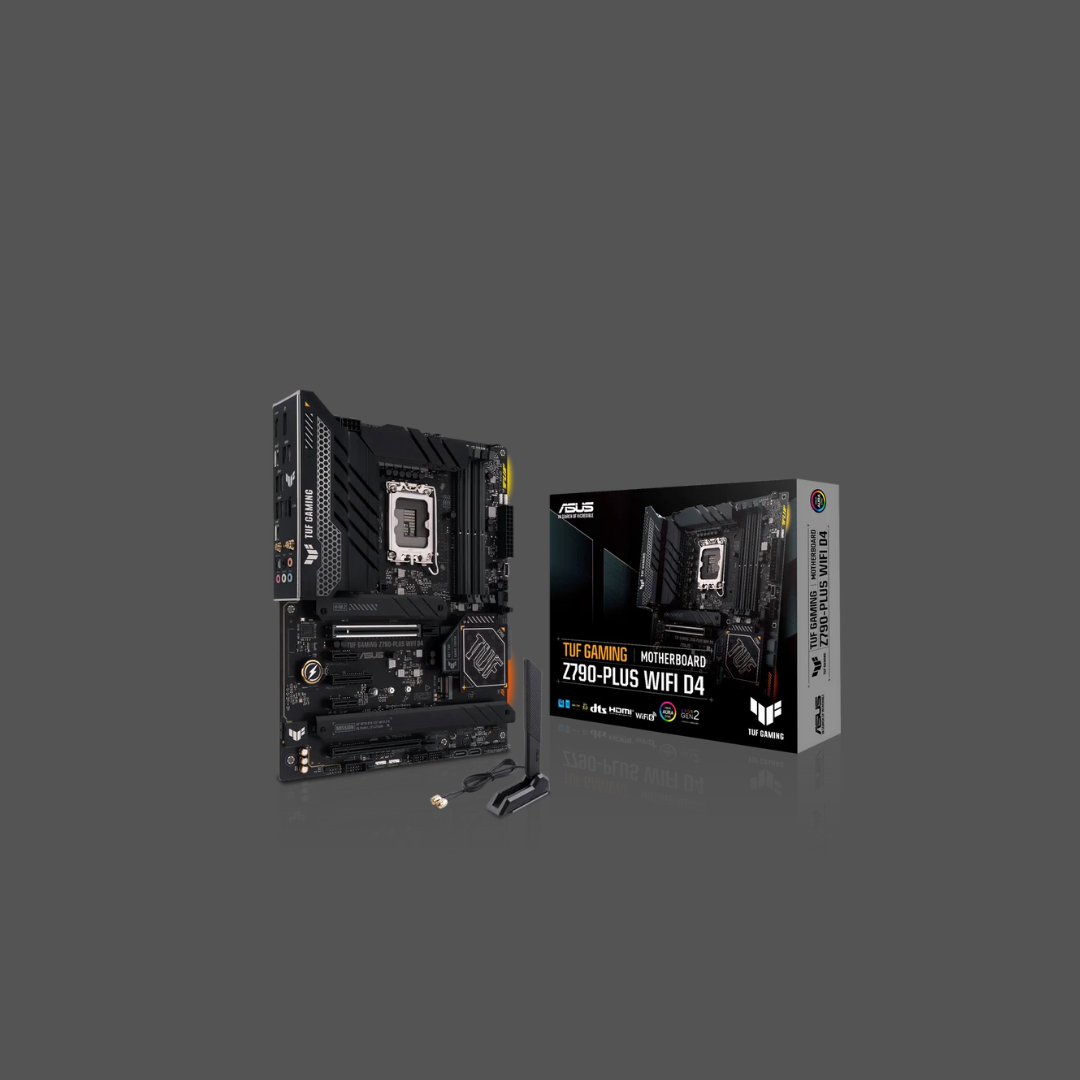

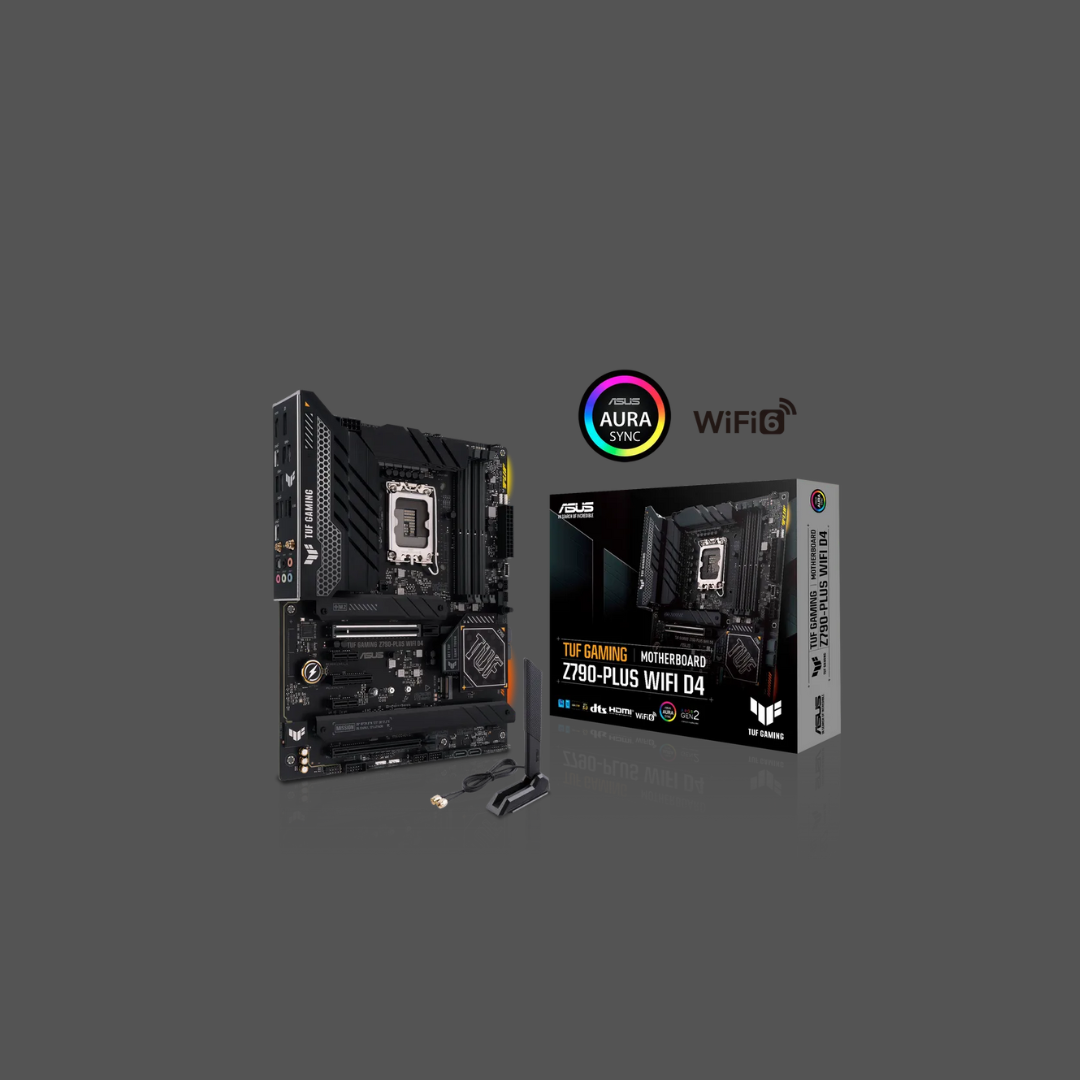

ASUS TUF GAMING Z790-PLUS WIFI D4
ASUS TUF GAMING Z790-PLUS WIFI D4
Couldn't load pickup availability
ASUS TUF GAMING Z790-PLUS WIFI D4. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
SPECIFICATIONS:
Memory
| Memory channels | Dual |
|---|---|
| Maximum internal memory | 128 |
| ECC | N |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 4 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Non-ECC | Y |
| Unbuffered memory | Y |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5333,5133,5066,5000,4800,4700,4600,4500,4400,4266,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 |
| Supported memory clock speed (max) | 5333 |
Features
| Product colour | Black |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 |
| Audio chip | Realtek S1220A |
| Windows operating systems supported | Windows 10,Windows 11 |
| Motherboard chipset | Intel Z790 |
Network
| Wi-Fi | Y |
|---|---|
| Ethernet LAN | Y |
| Bluetooth | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.2 |
Weight & dimensions
| Width | 305 |
|---|---|
| Depth | 244 |
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold |
| Supported processor sockets | LGA 1700 |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | N |

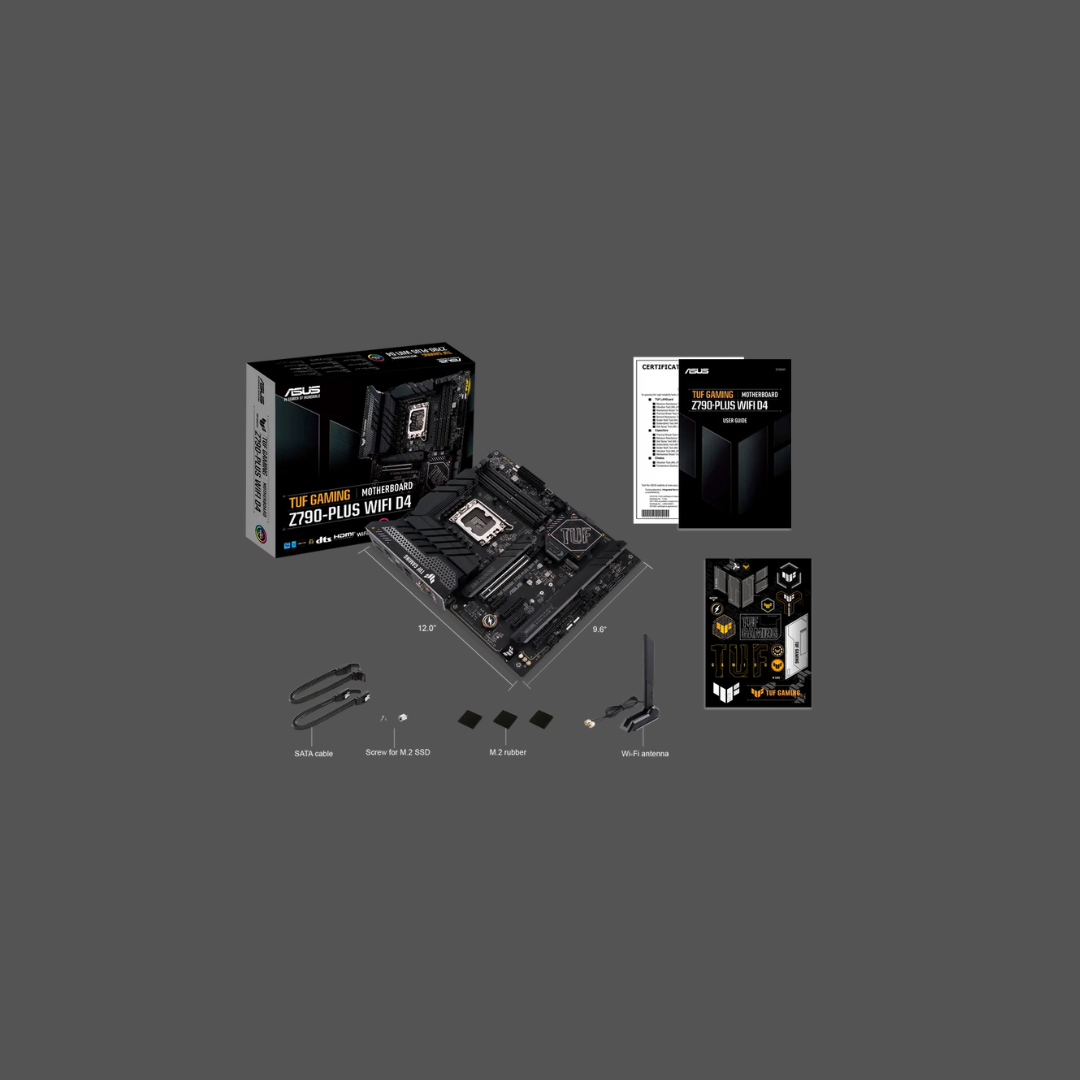

Packaging content
| Cables included | SATA |
|---|---|
| User guide | Y |
| Drivers included | Y |
Packaging data
| Package height | 70 |
|---|---|
| Package width | 340 |
| Package depth | 275 |
| Package weight | 2137 |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| 12V power connector | Y |
| RGB LED pin header | Y |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Thunderbolt headers | 1 |
| Number of chassis fan connectors | 4 |

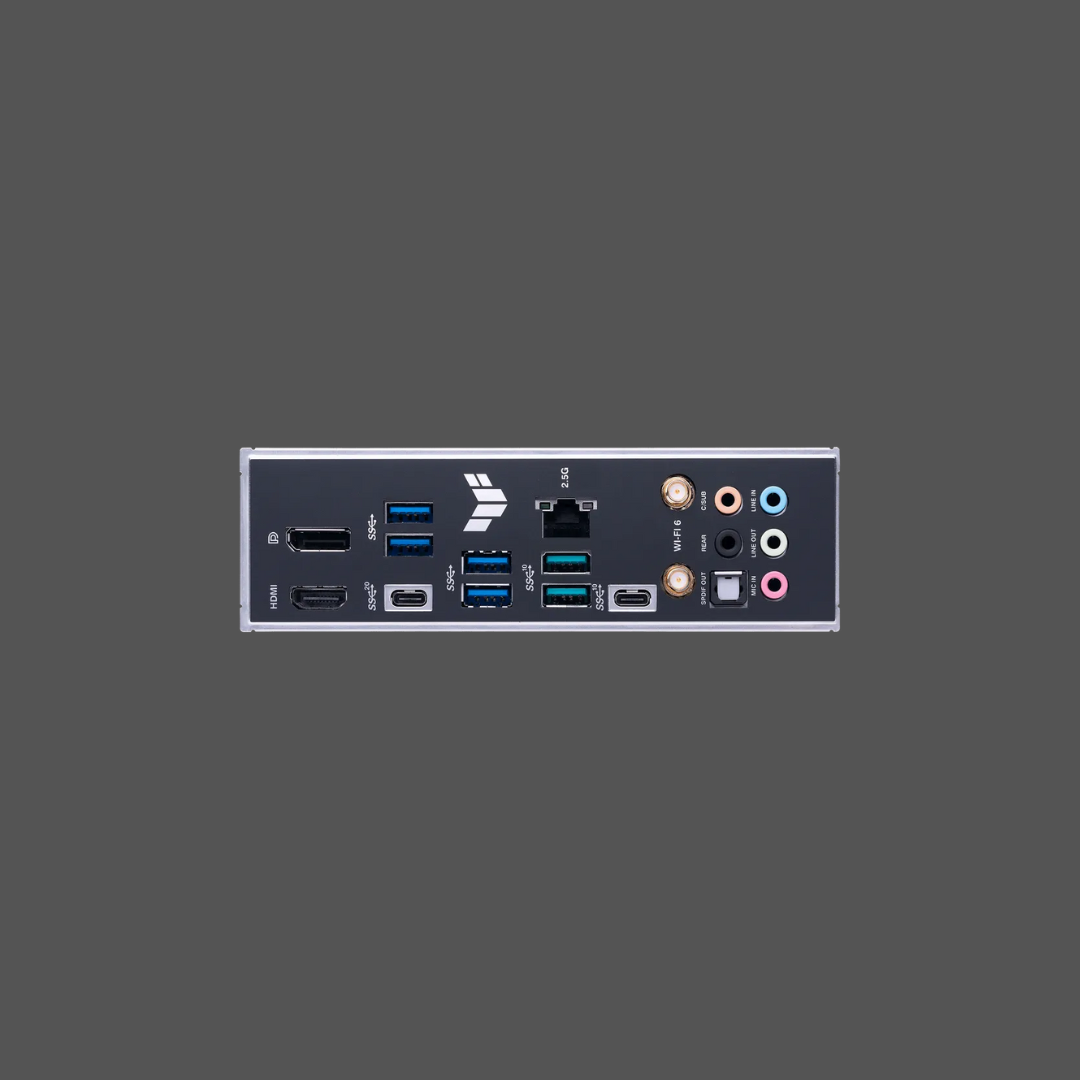

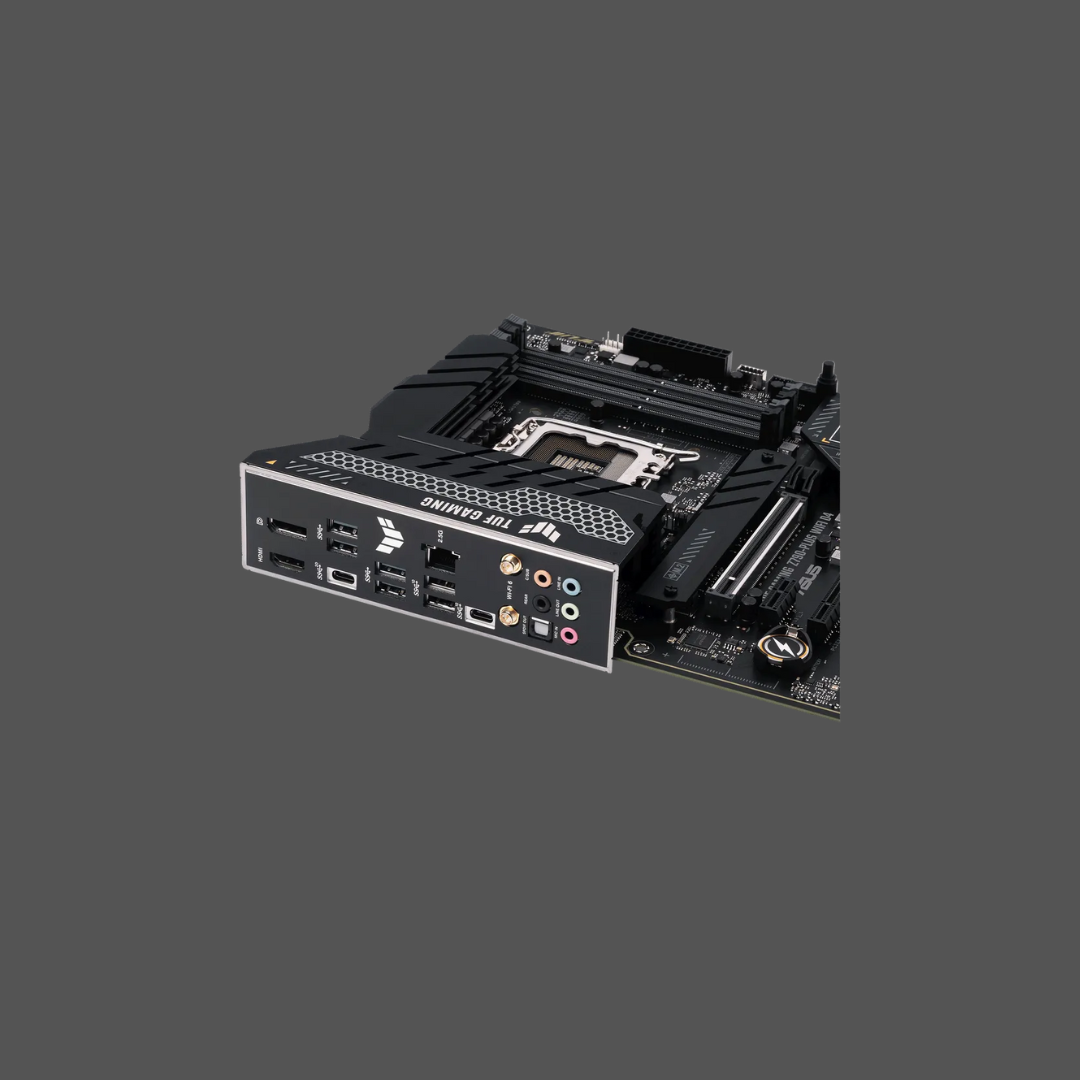

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Y |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| S/PDIF out port | Y |
| WiFi-AP antenna jack | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Y |
Storage controllers
| RAID levels | 0,1,5,10 |
|---|---|
| RAID support | Y |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| Clear CMOS button | Y |
| BIOS memory size | 192 |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 2 |
|---|---|
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
