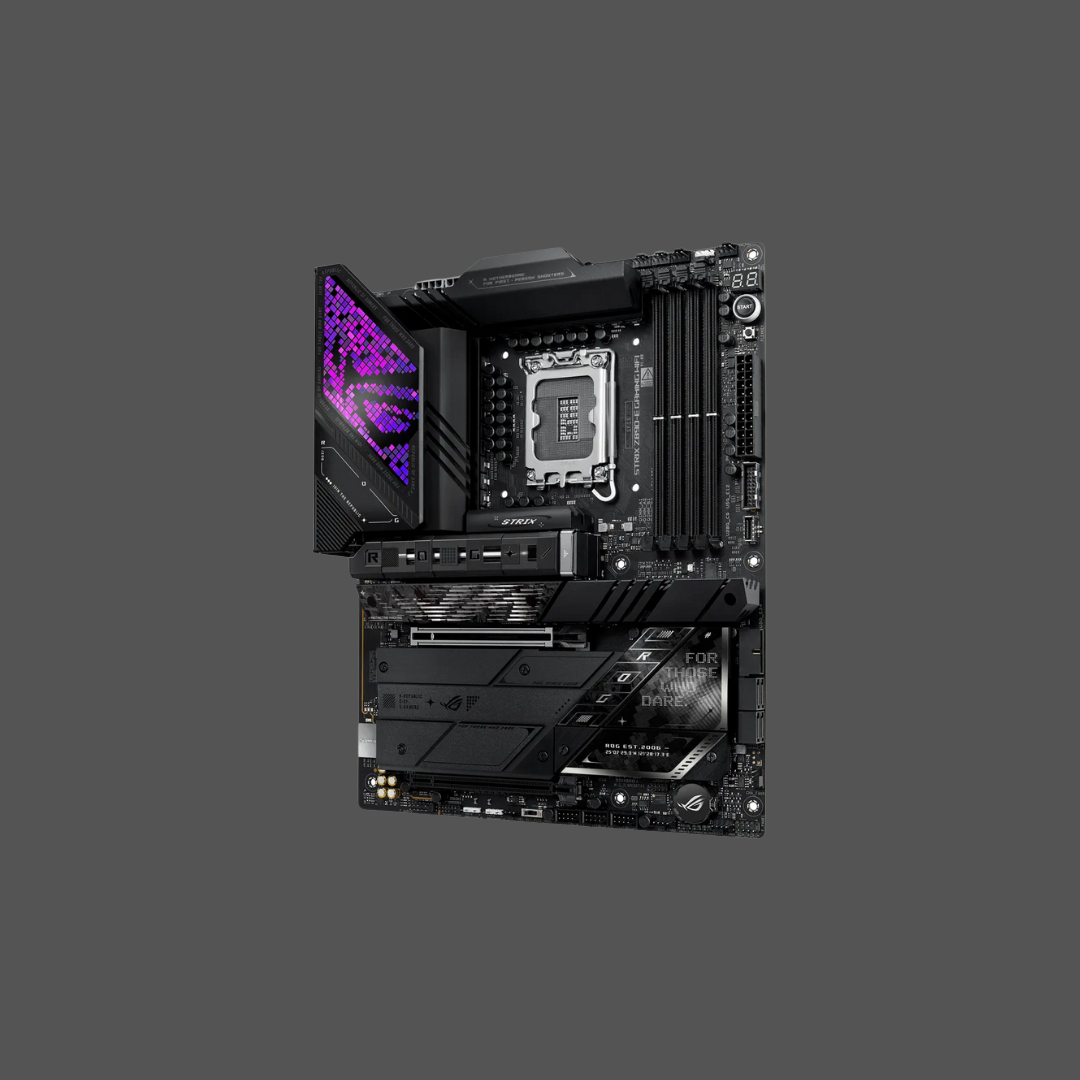

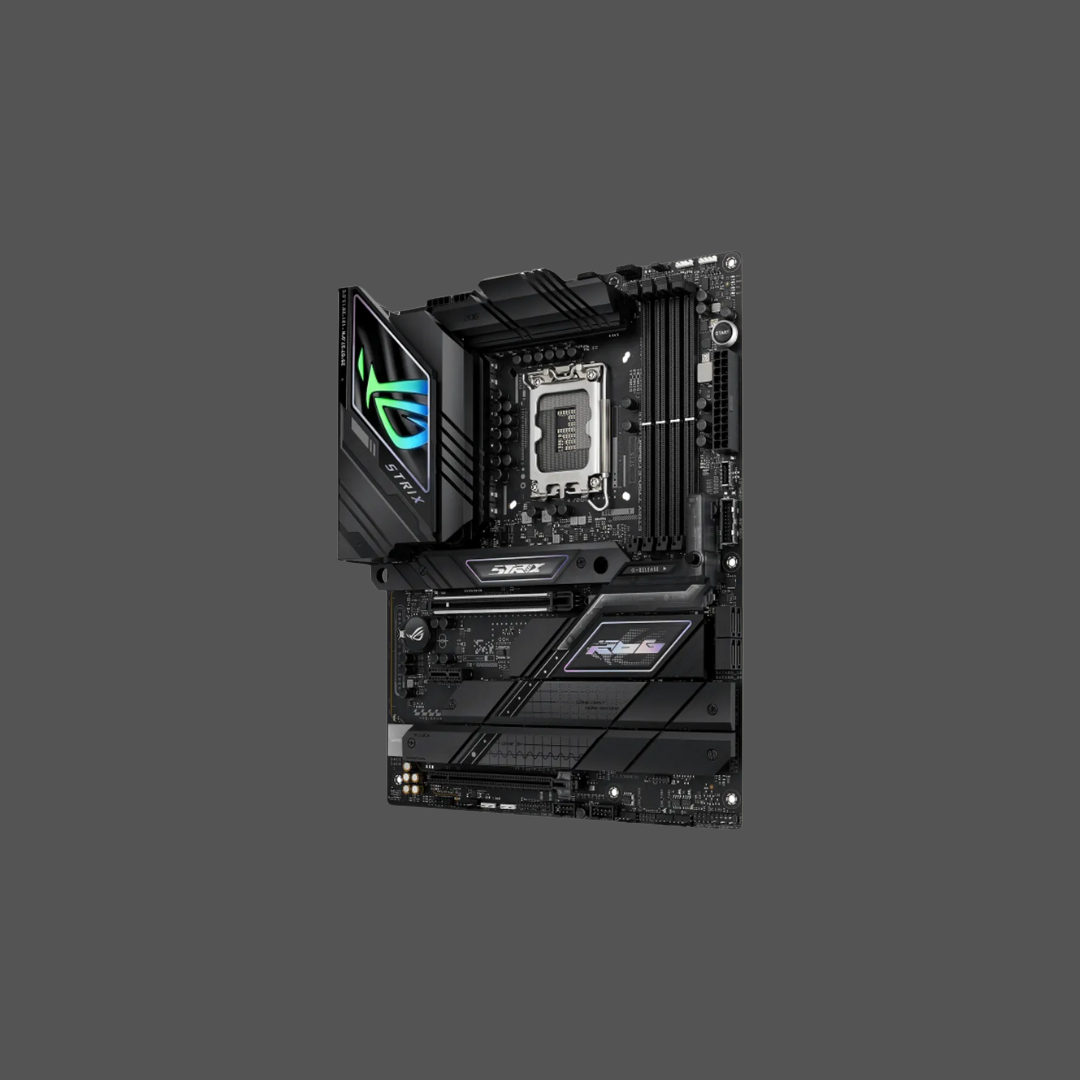

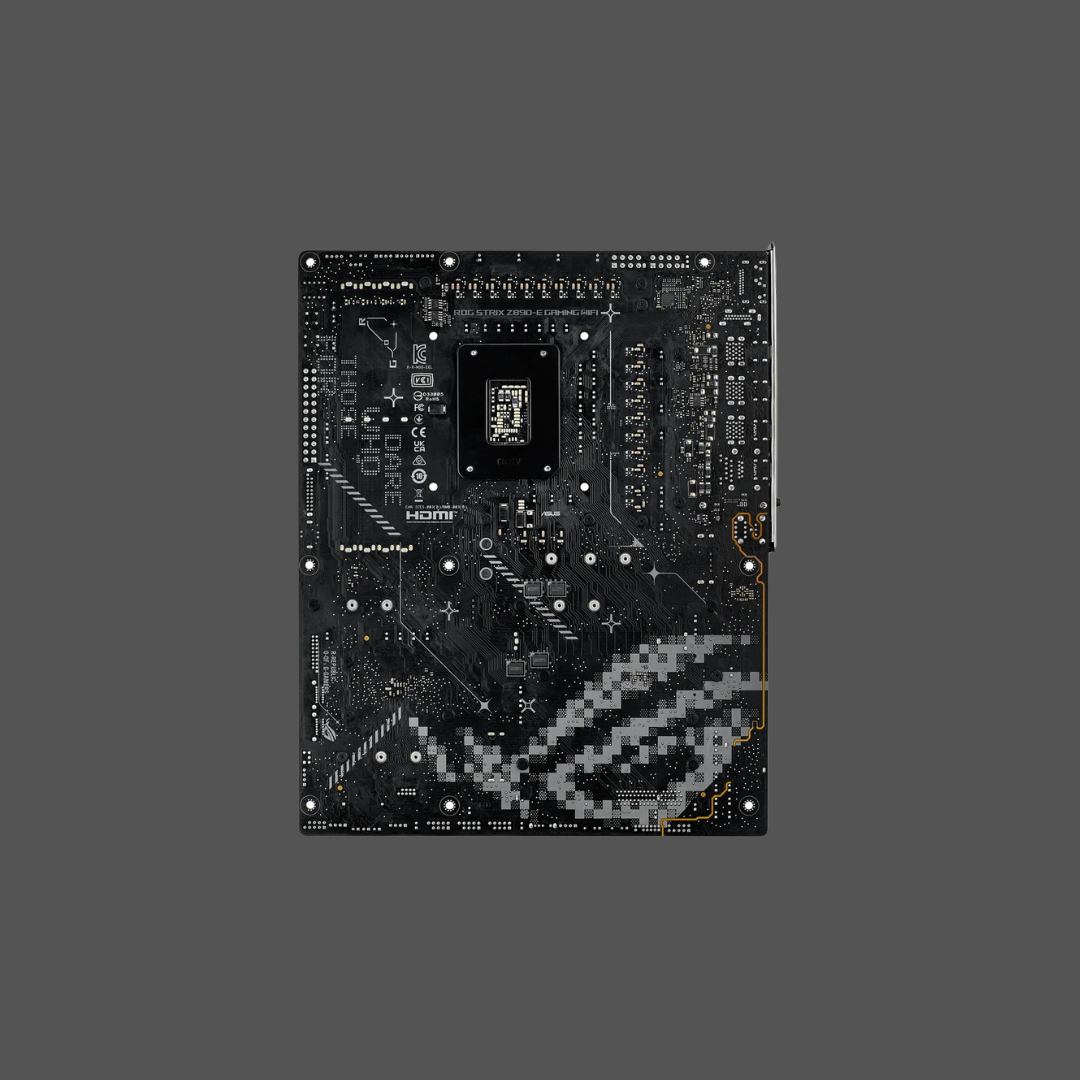

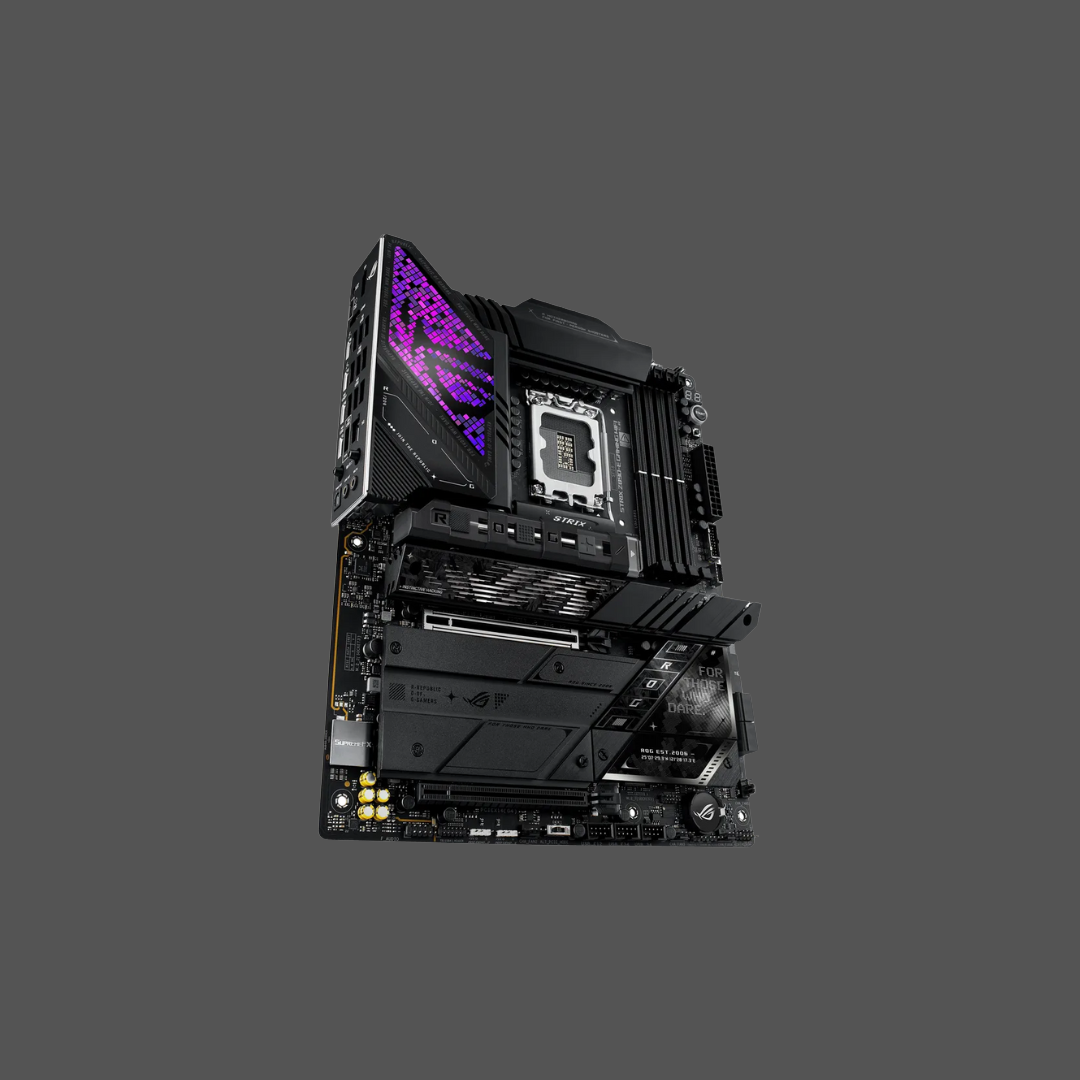

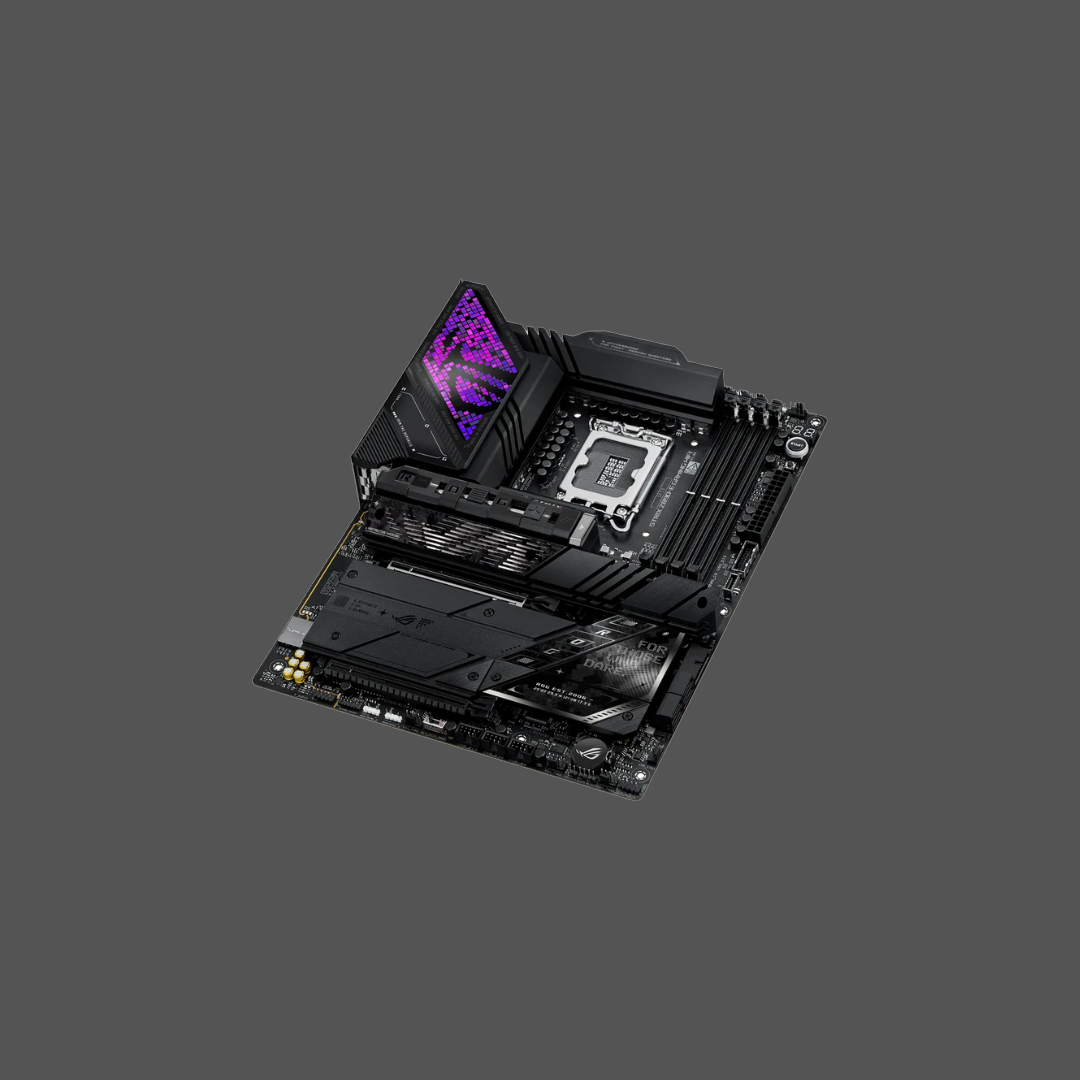

ASUS ROG STRIX Z890-E GAMING WIFI
ASUS ROG STRIX Z890-E GAMING WIFI
Regular price
R 13,049.00 ZAR
Regular price
Sale price
R 13,049.00 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
ASUS ROG STRIX Z890-E GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
SPECIFICATIONS:
Features
| Product colour | Black |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 |
| Audio chip | Realtek ALC4080 |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset | Intel Z890 |
Network
| Wi-Fi | Y |
|---|---|
| Ethernet LAN | Y |
| Bluetooth | Y |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Weight & dimensions
| Width | 305 |
|---|---|
| Depth | 244 |
Processor
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
Memory
| Number of memory slots | 4 |
|---|---|
| Memory slots type | DIMM |
| Non-ECC | Y |
| Unbuffered memory | Y |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 192 |
| Supported memory clock speed (max) | 8800 |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | N |
Internal I/O
| USB 2.0 connectors | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Chassis intrusion connector | Y |
| EPS power connector (8-pin) | Y |
| 12V power connector | Y |
| Thunderbolt headers | 1 |
| Number of chassis fan connectors | 5 |
| USB 3.2 Gen 2x2 connectors | 1 |

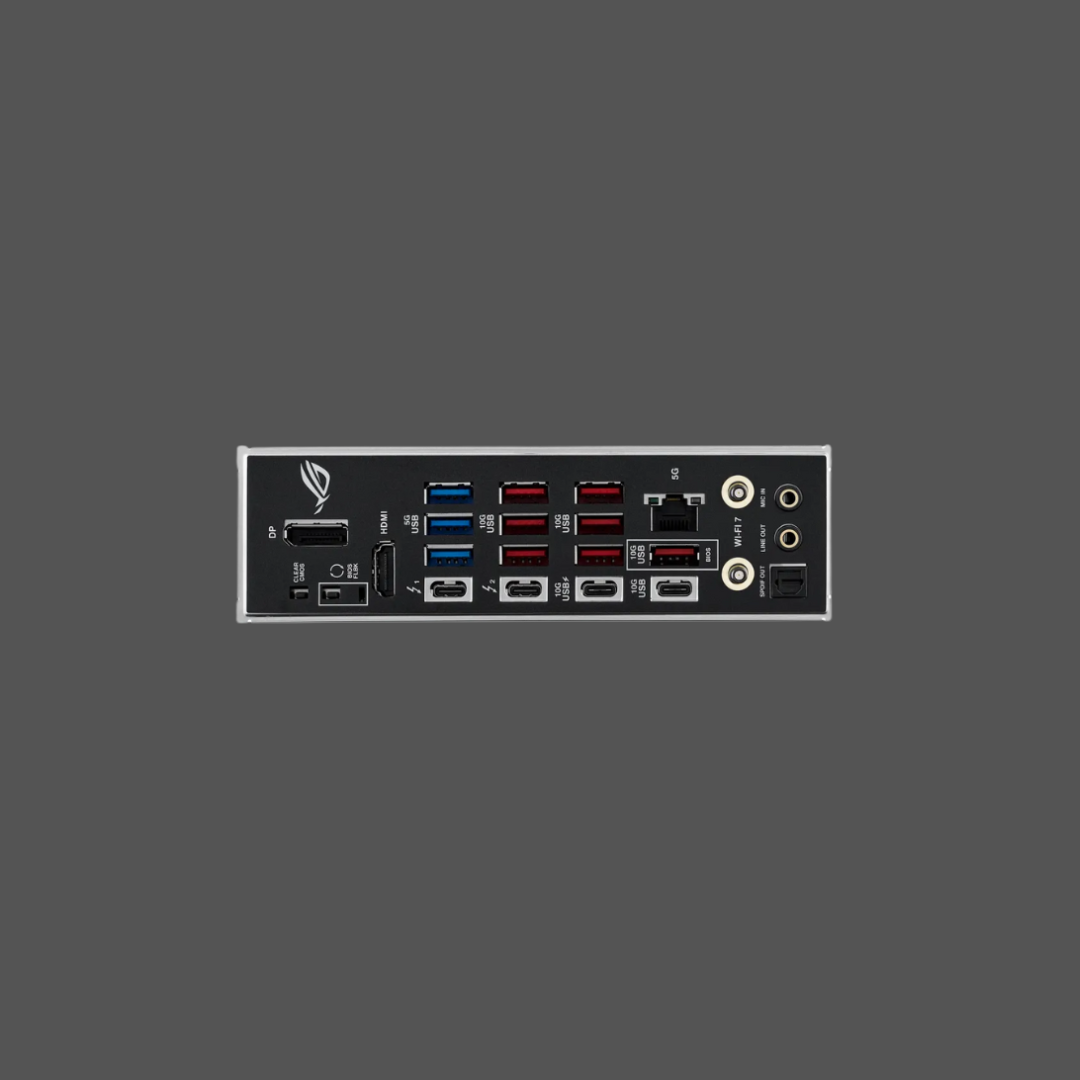

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Microphone in | Y |
| S/PDIF out port | Y |
| USB connector type | USB Type-A,USB Type-C |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt ports quantity | 2 |
Storage controllers
| RAID levels | 0,1,5,10 |
|---|---|
| RAID support | Y |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of storage drives supported | 11 |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 |
| Clear CMOS button | Y |
Expansion slots
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 7 |
Packaging data
| Package depth | 87 |
|---|---|
| Package height | 281 |
| Package weight | 2580 |
| Package width | 356 |
