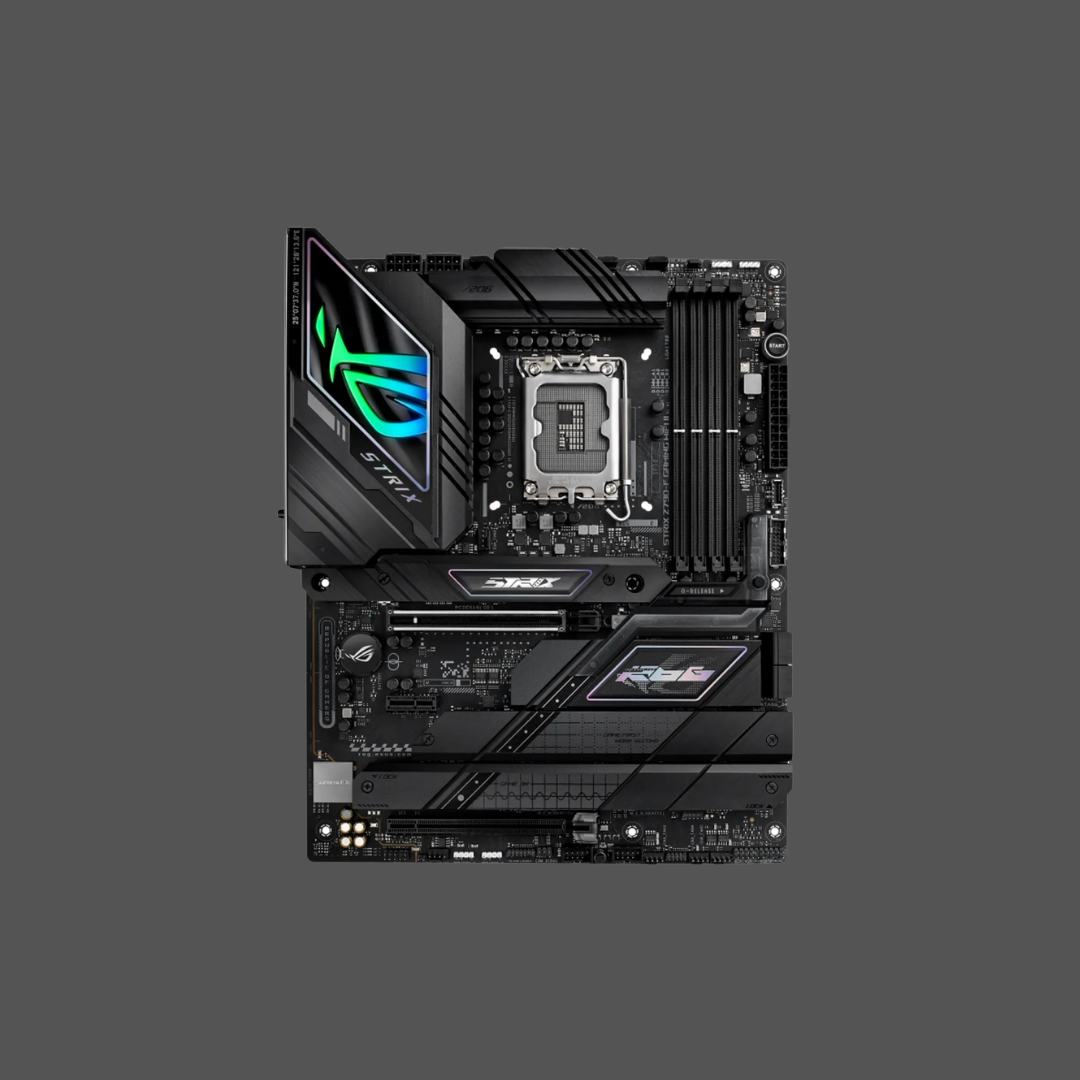

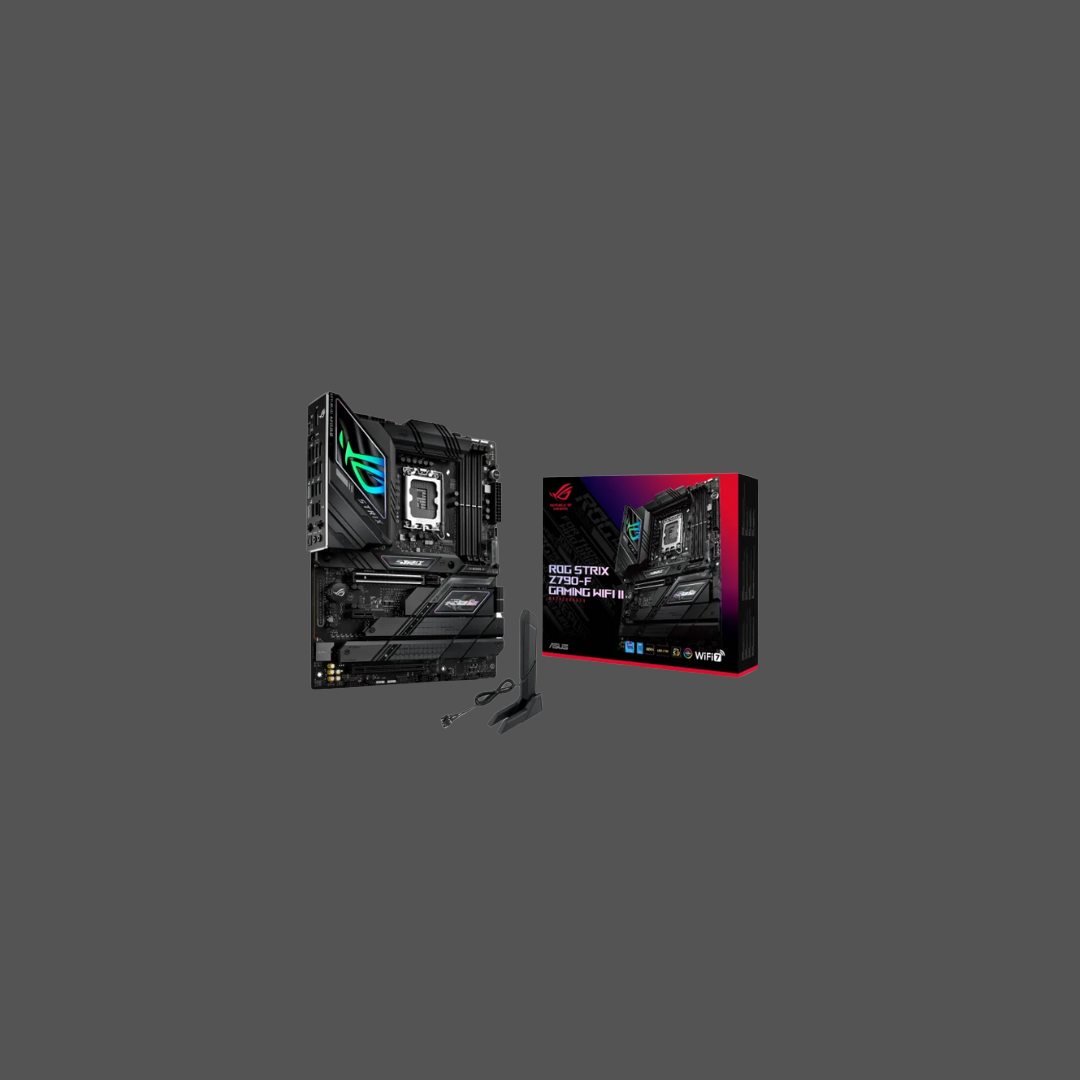

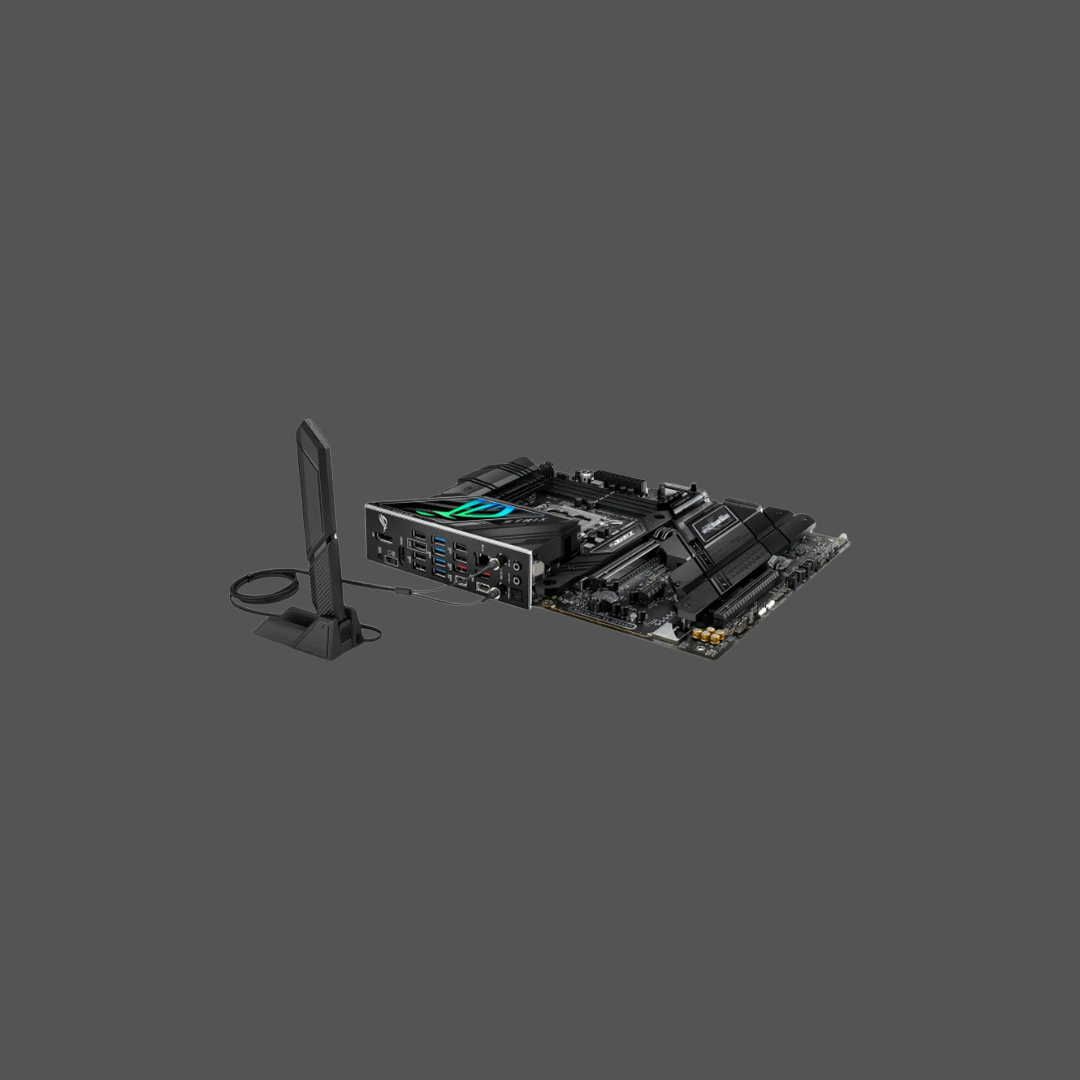

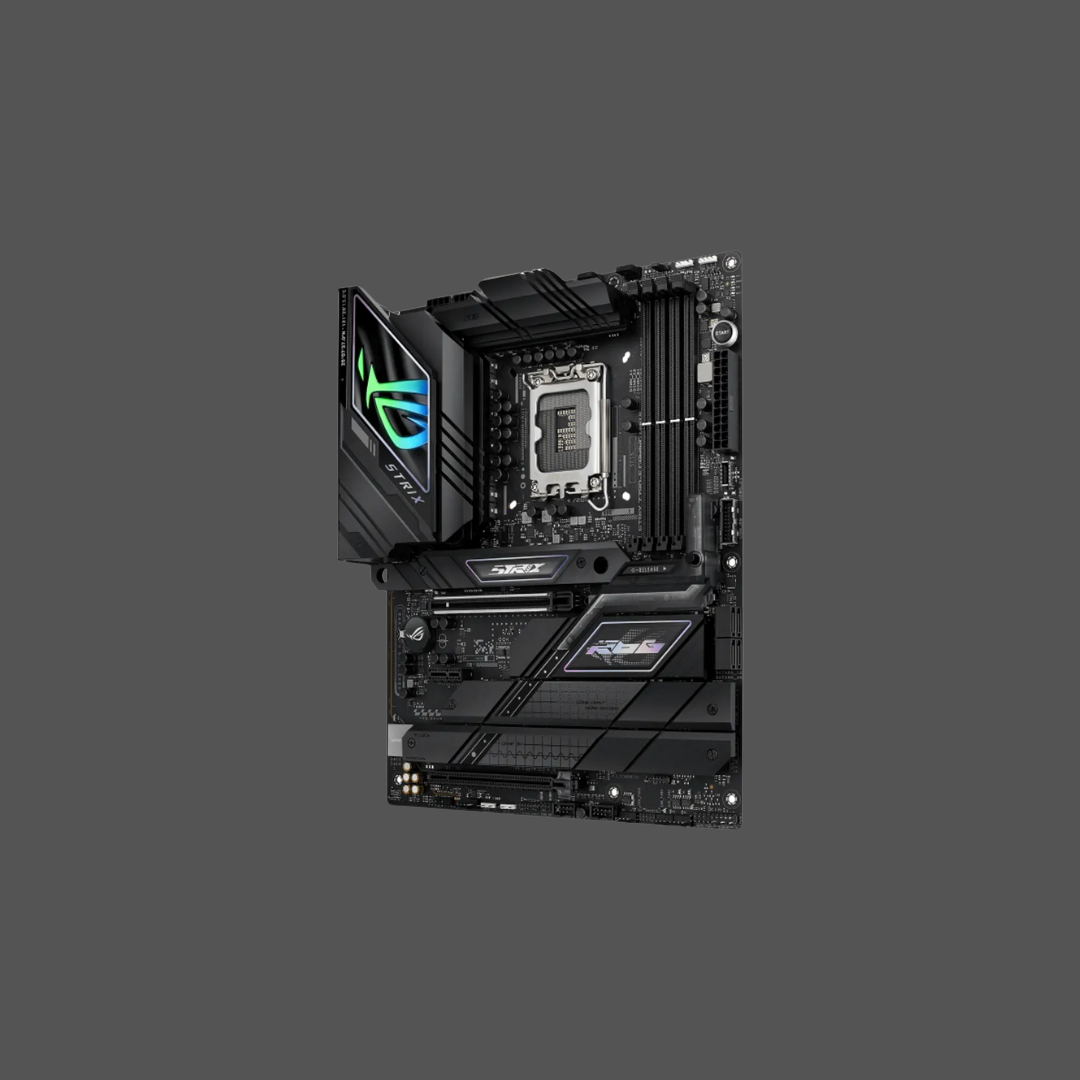

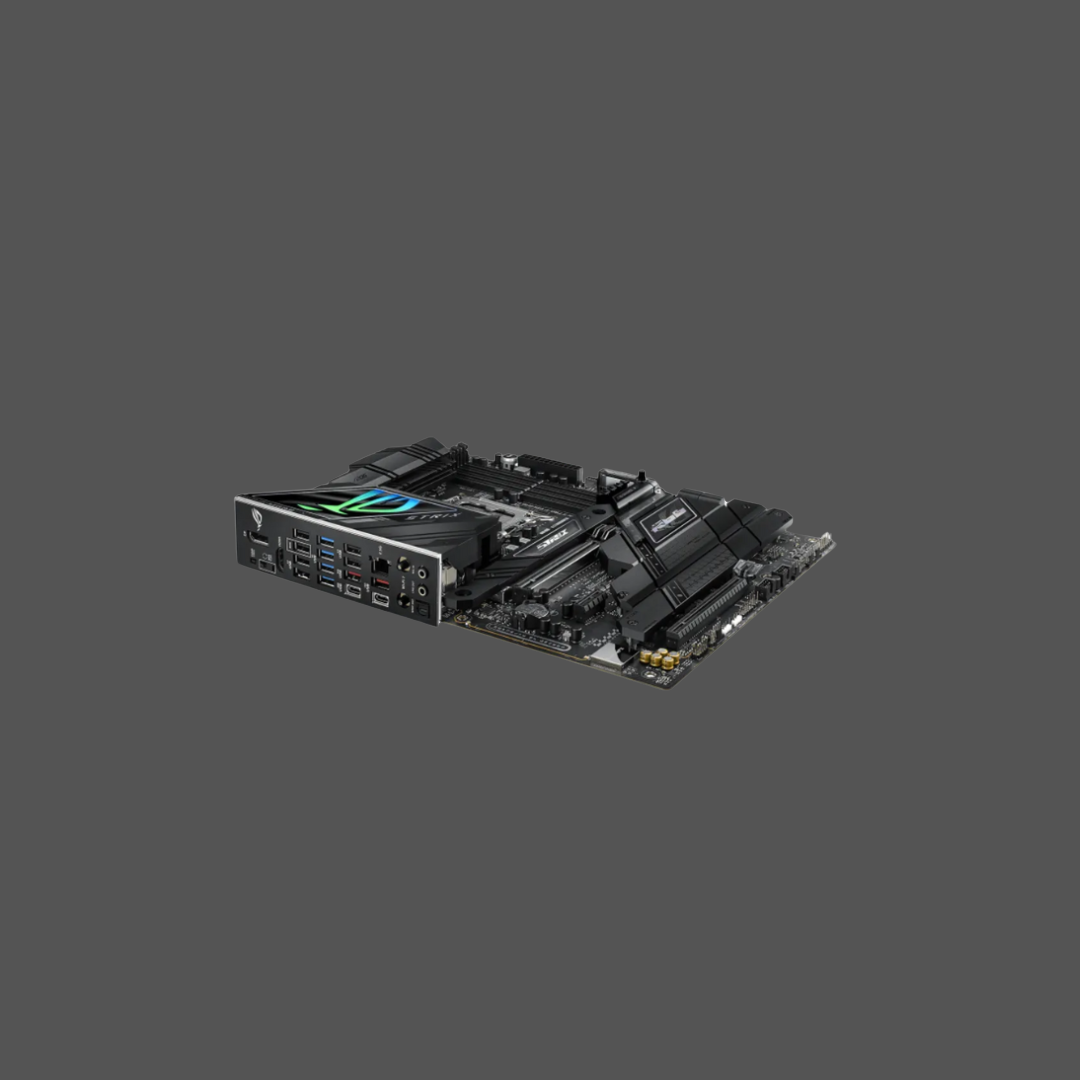

ASUS ROG STRIX Z790-F GAMING WIFI II
ASUS ROG STRIX Z790-F GAMING WIFI II
Couldn't load pickup availability
ASUS ROG STRIX Z790-F GAMING WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
SPECIFICATIONS:
Network
| Wi-Fi | Y |
|---|---|
| Ethernet LAN | Y |
| Bluetooth | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
Weight & dimensions
| Width | 305 |
|---|---|
| Depth | 244 |
Processor
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel Celeron,Intel Pentium Gold,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9 |
Memory
| Number of memory slots | 4 |
|---|---|
| Memory slots type | DIMM |
| Non-ECC | Y |
| Unbuffered memory | Y |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speed (max) | 8000 |
| Maximum internal memory | 192 |
| Supported memory clock speeds | 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 |
Graphics
| Parallel processing technology support | Not supported |
|---|
Features
| Component for | PC |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Audio output channels | 5.1 |
| Audio chip | Realtek ALC4080 |
| Windows operating systems supported | Windows 10 x64,Windows 11 |
| Motherboard chipset | Intel Z790 |

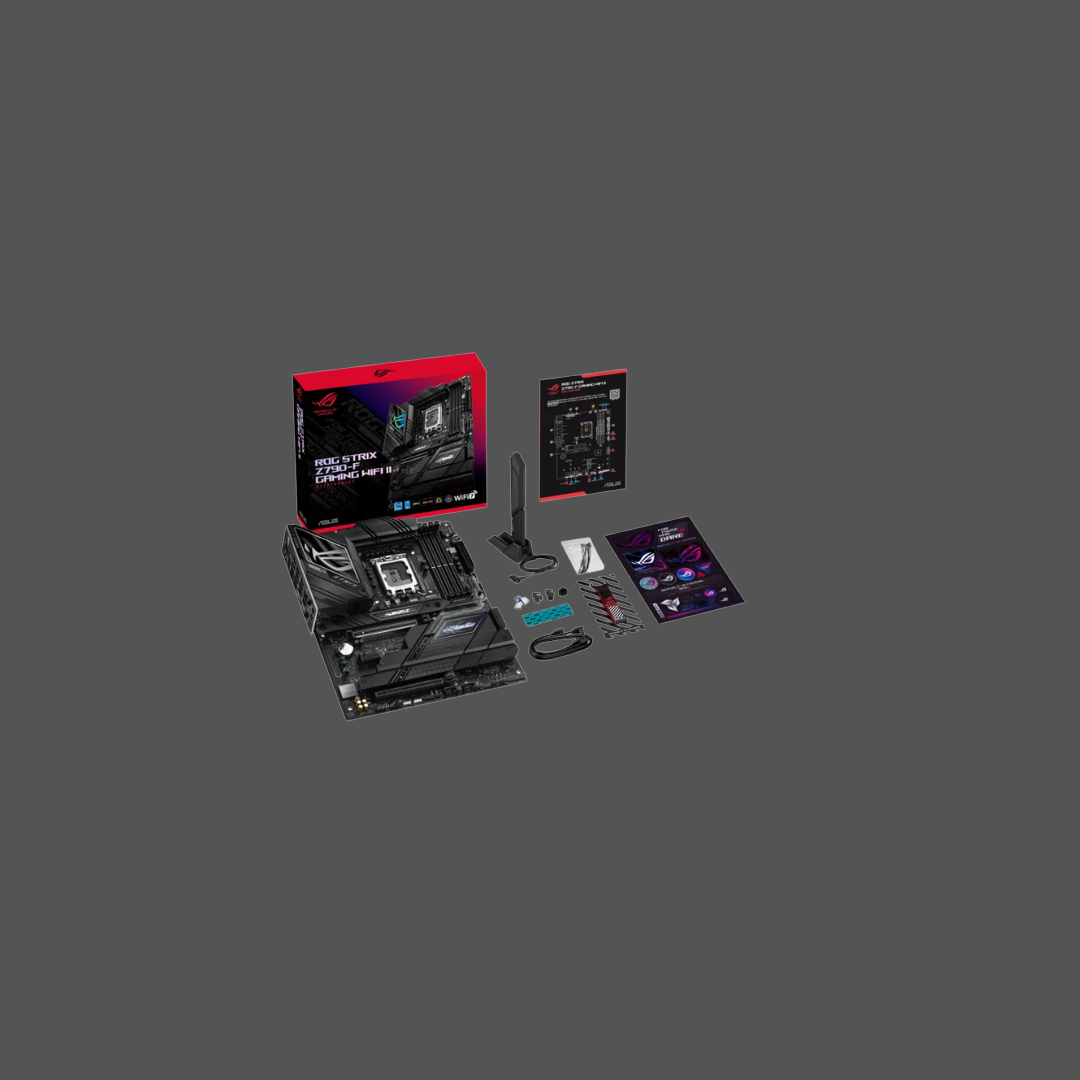

Packaging content
| Cables included | SATA |
|---|
Expansion slots
| Number of M.2 (M) slots | 2 |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| 12V power connector | Y |
| RGB LED pin header | Y |
| Thunderbolt headers | 1 |
| Number of chassis fan connectors | 5 |
| USB 3.2 Gen 2x2 connectors | 1 |
Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Y |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| S/PDIF out port | Y |
| DisplayPorts quantity | 1 |
| WiFi-AP antenna jack | 1 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Storage controllers
| RAID levels | 0,1,5,10 |
|---|---|
| RAID support | Y |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of storage drives supported | 6 |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 |
| Clear CMOS button | Y |
