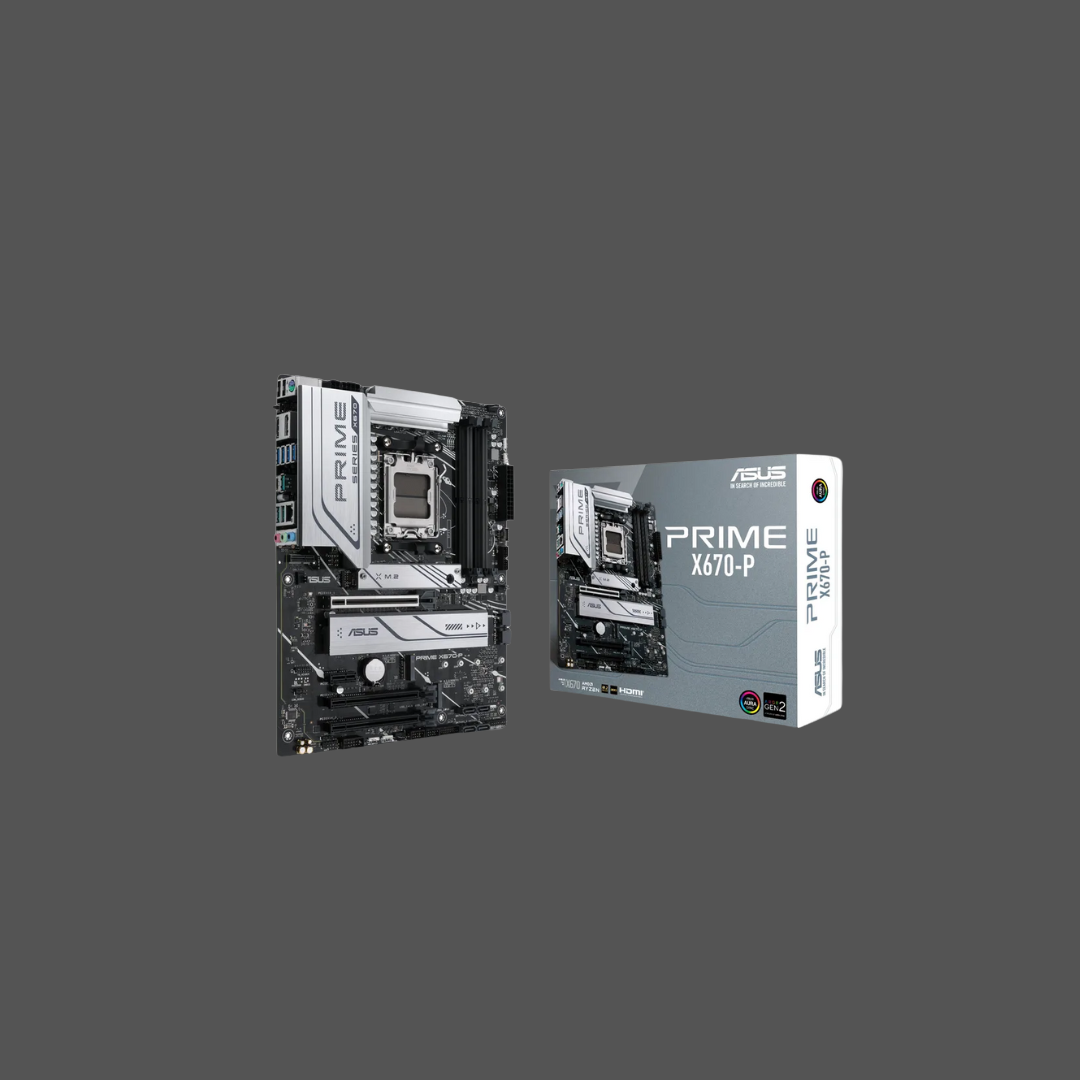

ASUS PRIME X670-P
ASUS PRIME X670-P
Regular price
R 6,399.00 ZAR
Regular price
Sale price
R 6,399.00 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
ASUS PRIME X670-P. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
SPECIFICATIONS:
Memory
| Memory channels | Dual |
|---|---|
| Maximum internal memory | 128 |
| ECC | Y |
| Number of DIMM slots | 4 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Non-ECC | Y |
| Unbuffered memory | Y |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 4800,5100,5200,5400,5600,5800,6000,6200,6400 |
Network
| Wi-Fi | N |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet |
Weight & dimensions
| Width | 305 |
|---|---|
| Depth | 244 |
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| Maximum resolution | 7680 x 4320 |
Features
| Component for | PC |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| Motherboard chipset | AMD X670 |
Packaging content
| Cables included | SATA |
|---|---|
| User guide | Y |
Packaging data
| Package height | 68 |
|---|---|
| Package weight | 1820 |
| Package depth | 273 |
| Package width | 338 |
Expansion slots
| Number of M.2 (M) slots | 3 |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| Number of chassis fan connectors | 3 |
| TPM connector | Y |
| Number of SATA III connectors | 6 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| 12V power connector | Y |
| RGB LED pin header | Y |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |

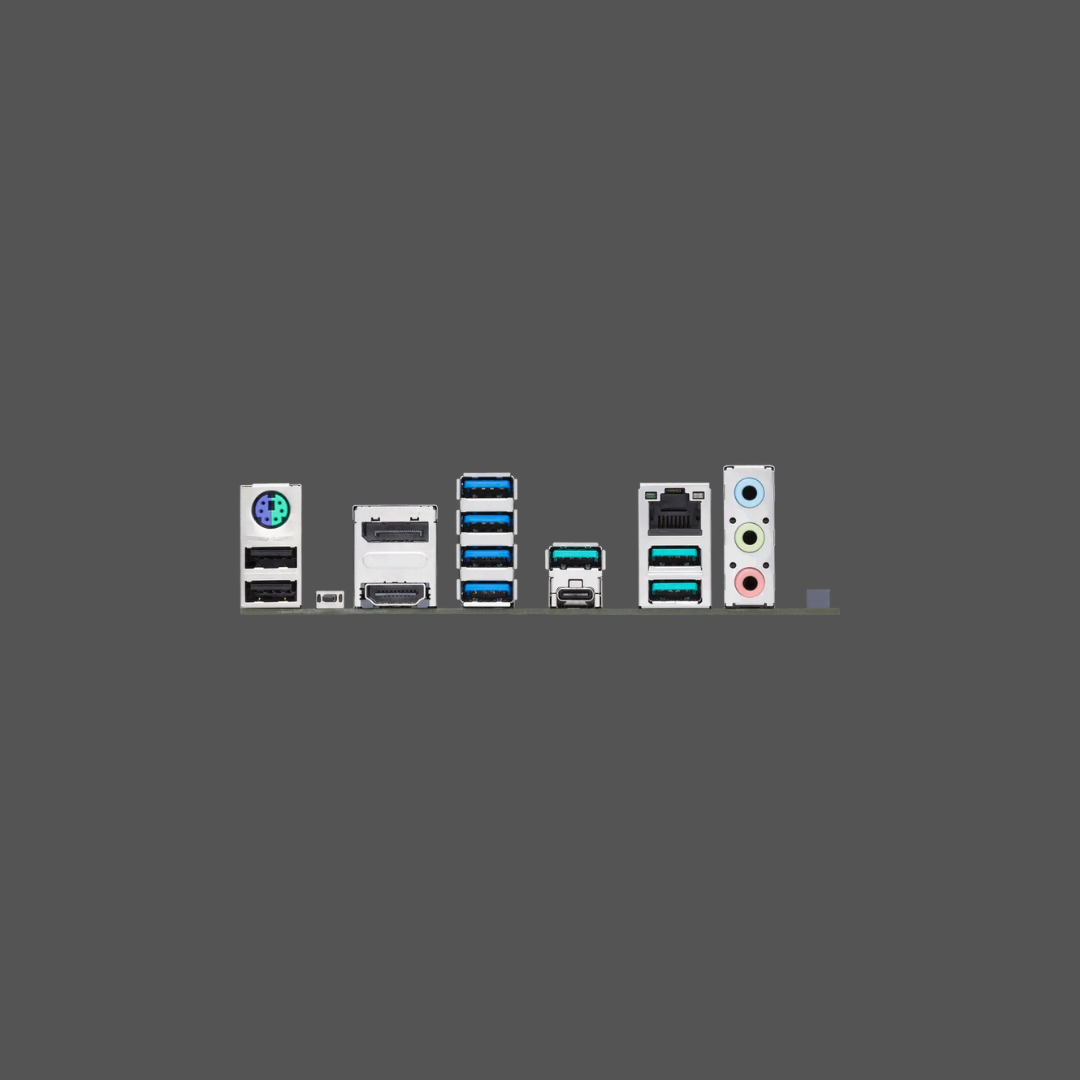

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Storage controllers
| RAID levels | 0,1,10 |
|---|---|
| RAID support | Y |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 |
Other features
| Special features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|---|---|

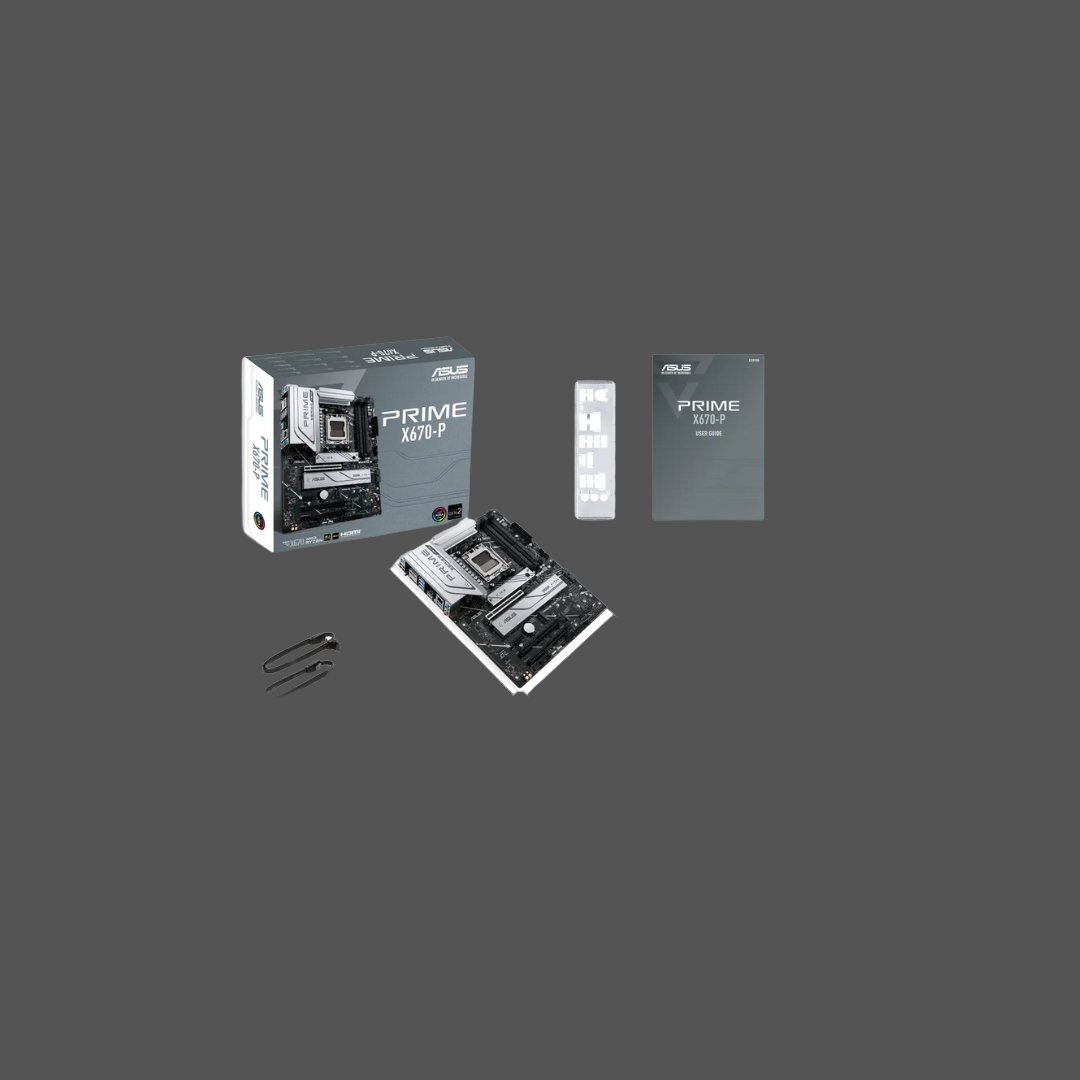

| Packaging content | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD Documentation 1 x User guide |
